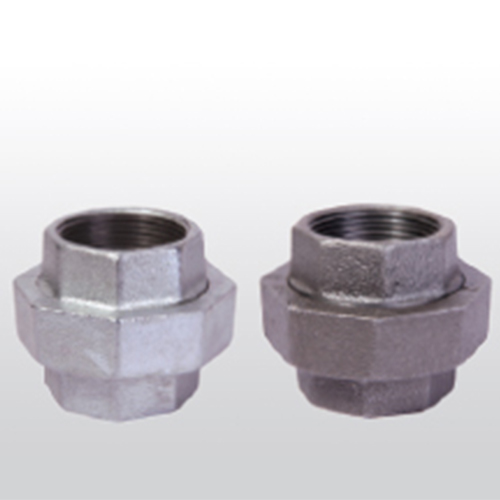

Union, Standard, Flat Seat, with Gasket

DESCRIPTION

International Standards:
British Standard : ISO 5922 / ISO 49 / ISO 7 / 1
American Standard : ANSI / ASME A197-79 / B 16.3-3.85 / B1.20.1-83
DIN Standard : DIN 2950 / 1692 / 2999

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4
mm 6 8 10 15 20 25 32
Dim.(mm) A 38 42 45 48 52 58 65
Size Inch 11/2 2 21/2 3 4 6
mm 40 50 65 80 100 150
Dim. (mm) A 70 78 85 95 100 144

flatunion
