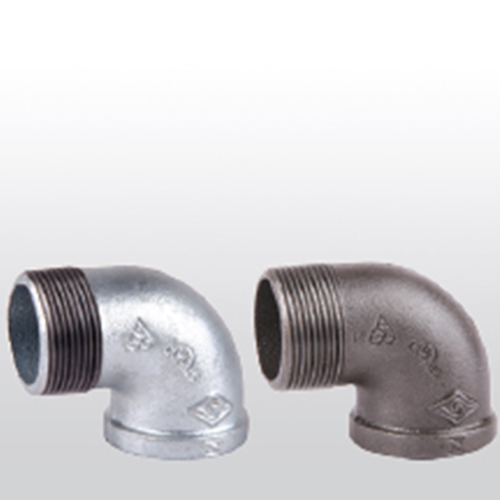

90° Street Elbow, Banded, Equal

DESCRIPTION

International Standards:
British Standard : ISO 5922 / ISO 49 / ISO 7 / 1
American Standard : ANSI / ASME A197-79 / B 16.3-3.85 / B1.20.1-83
DIN Standard : DIN 2950 / 1692 / 2999

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4
mm 6 8 10 15 20 25 32
Dim.(mm) A 19 21 25 28 33 38 45
B 25 28 32 37 43 52 60
Size Inch 11/2 2 21/2 3 4 6
mm 40 50 65 80 100 150
Dim. (mm) A 50 58 69 78 96 115
B 65 74 88 98 118 202
